KN3C-402 4PDT ON ON Toggle Switch:

Toggles switches range in Daier from 1 to 4 poles, 1 to 20 amps. We offer a variety of nylon and metal toggle styles, as well as illuminated toggles. We have many kinds of terminal, the most popular terminal is PCB terminal, then is screw terminal.

They are widely used in industrial equipment. Some of switches made by bakelite. Because of the advantage of switches are large current and long life, they are popular in market.

Several families of heavy-duty toggle switches are available, as well as a high-temperature snap-in toggle switch series. Certifications include CE, CQC, TUV&SGS.

KN3C-402 4PDT ON ON Toggle Switch related items:

KN3C-402    12 Pin, ON-OFF, screw terminal

KN3C-403    12 Pin, ON-OFF-ON, screw terminal

KN3C-402p    12 Pin, ON-OFF, PCB terminal

KN3C-403P    12 Pin, ON-OFF-ON, PCB terminal

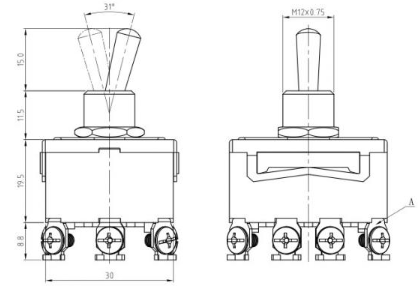

KN3C-402 4PDT ON ON

Toggle Switch datasheet below:

Housing:    Bakelite

Lever:    Brass with Nickel plated

Terminal:    Brass with sliver plated

Contact & Operation:    ON-OFF/(ON)-OFF

Rating:    6A/10A/20A 250VAC

Contact Resistance:    50mΩ max

Electrical Life:    ≥ 10,000 Cycles

Mechanical Life:    ≥ 100,000 Cycles

Dielectric strength:    1500VAC 1 minute

Operating Temperature:    -25℃~+85℃

Insulation Resistance:    1000mΩ min (500VDC)

OEM or ODM:    Available
