KN3C-202E 2 Way Toggle Switch:

Toggles switches range in Daier from 1 to 4 poles, 1 to 20 amps. We offer a variety of nylon and metal toggle styles, as well as illuminated toggles. We have many kinds of terminal, the most popular terminal is PCB terminal, then is screw terminal.

They are widely used in industrial equipment. Some of switches made by bakelite. Because of the advantage of switches are large current and long life, they are popular in market.

Several families of heavy-duty toggle switches are available, as well as a high-temperature snap-in toggle switch series. Certifications include CE, CQC, TUV&SGS.

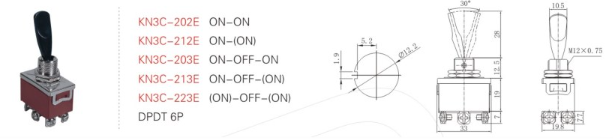

KN3C-202E 2 Way Toggle Switch detailed information as below:

KN3C-202E    6Pin, ON-ON, screw terminal

KN3C-212E    6Pin, ON- momentary ON, screw terminal

KN3C-203E    6Pin, ON-OFF-ON, screw terminal

KN3C-213E    6Pin, ON-OFF- momentary ON, screw terminal

KN3C-223E    6Pin, momentary ON-OFF- momentary ON, screw terminal

KN3C-202E 2 Way Toggle Switch datasheet below:

Housing:    Bakelite

Lever:    Brass with Nickel plated

Terminal:    Brass with sliver plated

Contact & Operation:    ON-OFF/(ON)-OFF

Rating:    6A/10A/20A 250VAC

Contact Resistance:    50mΩ max

Electrical Life:    ≥ 10,000 Cycles

Mechanical Life:    ≥ 100,000 Cycles

Dielectric strength:    1500VAC 1 minute

Operating Temperature:    -25℃~+85℃

Insulation Resistance:    1000mΩ min (500VDC)

OEM or ODM:    Available
